Ram Pressure Shadowing shadows

When a wind slams into a galaxy disk and strips gaseous material, it doesn’t uniformly pass through the disk. Therefore, material along the wind direction beyond the disk will be “shielded” to some degree from the wind. This shiedling, which is modelled in GalaRP with the ShadowBase class and associated subclasses, tries to capture this by limiting the ram pressure strength evaluated at various physical positions.

GalaRP has a large suite of built-in shadow classes for the user to try, which range from shadow strengths that are uniform across the shadowed region, to exponential drop-offs, to a shadow that loses strength the higher a particle goes above the disk. It is also easy for the user to define their own subclasses using the ShadowBase class.

Dynamic Shadow

The main shadow the user should apply is the DynamicShadow, which automatically determines the shadow based on the particle distributions and the wind. It does this by rotating the particles into the wind’s frame of reference, determines sightlines along the wind direction by binning the particles, and then applies a damping for the given particles based on the cumulative distribution along that line of sight.

shadow = grp.DynamicShadow(wind, depth=0.02, n_bins=20)

There are “static shadows” which the remainder of this page covers. These are kept in as simple shadowing prescrptions, but many important aspects of a ram pressure event are not replicated using these models. However, they do speed up individual simulations, so toy models can use them for simple exercises.

Basic Example

The easiest way to create a shadow is to initialize it using a wind. For example, we will define a simple uniform shadow that is then set up to coincide with a 45 degree Lorentzian wind.

import galarp as grp

wind = grp.LorentzianWind(t0=500 * u.Myr, width=400 * u.Myr, units=galactic)
wind.init_from_inc(inclination=np.deg2rad(40), strength = 500 * u.km / u.s)

shadow = grp.UniformShadow()
shadow.init_from_wind(wind)

You pass this into a GalaRP sim as follows:

sim = grp.RPSim(shadow=shadow)

Dynamic Shadow Based on Stripping Radius

The shadow’s size should realistically change based on the size of the active disk. For example, a gas disk that started with a 10kpc radius shouldn’t still have a 10kpc shadow when the remaining gas disk after stripping is only 2kpc in radius.

This is handled in GalaRP using the dynamic keyword in the ShadowBase class. Setting this keyword to True will have the shadow, at each evaluation, determine the stripping radius of the disk on the fly using grp.calculate_rstrip(...) and will set the disk radius of the shadow accordingly.

shadow = grp.UniformShadow(dynamic=True)
shadow.init_from_wind(wind)

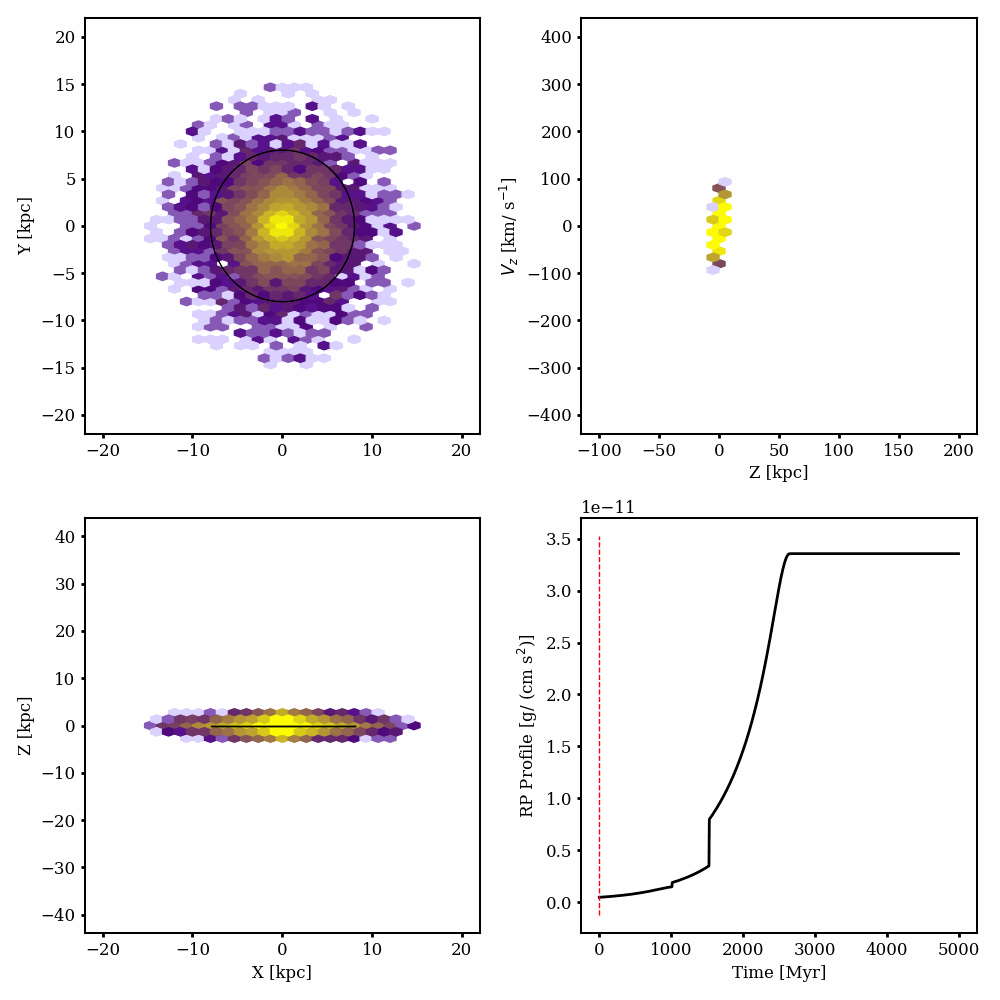

You can see this in action in the following plot, where there stripping radius is shown as a black circle that evolves to shrink as the disk is stripped.

and the evolution of the stripping radius can be shown for each Runge-Kutta iteration (which are taken directly from a GalaRP run by appending self.Rdisk at each call of shadow.evaluate(). This can be done by setting debug=True in the shadow class.

User-Defined shadows

To define a shadow, simply call the ShadowBase class as the parent class. The user will need to define the evaluate method, which determines the shadow strength at a time t for a set of positions q. It should be noted that the shadow’s evaluate function should return values between 0 and 1, where 0 represents complete shadowing (i.e. the ram pressure acceleration is reduced to 0) and 1 represents no shadowing. In the RPSim class, it is literally a multiple applied to each particle’s calculated ram pressure acceleration.

For an example, this is a an example class for a uniform wind that also has a dropoff based on height above the disk.

class UniformExponentialZVariableShadow(grp.ShadowBase):
    def __init__(self, damping=0.5, R_disk=10, zmin=0.5, phi=np.deg2rad(20), z_dropoff=10, **kwargs ):
        super().__init__(damping=damping, R_disk=R_disk, shadow_name="Uniform", **kwargs)
        if isinstance(zmin, u.Quantity):
            zmin = zmin.to(u.kpc).value
        self.zmin = zmin
        self.phi = phi
        self.z_dropoff = z_dropoff

        self.frac = kwargs.get("frac", 0.9)
        self.Rmax = kwargs.get("Rmax", 20)
        self.zmax = kwargs.get("zmax", 2)
        self.debug = kwargs.get("debug", False)

        self.Rdisks = []

    def evaluate(self, q, t):
        x, y, z = q.T

        if self.dynamic_shadow:
            self.R_disk = grp.calculate_rstrip(q.T, frac=self.frac, rmax=self.Rmax, zmax=self.zmax)
        if self.debug:
            self.Rdisks.append(self.R_disk)

        cent = _shadow_tangent(z, self.phi)
        dist = np.sqrt((x - cent) ** 2 + y**2)

        out = np.ones(dist.shape)
        in_disk = np.logical_and((z > self.zmin), (dist < self.R_disk))
        out[in_disk] = self.damping + (1 - np.exp(-z[in_disk] / self.z_dropoff))

        return out
